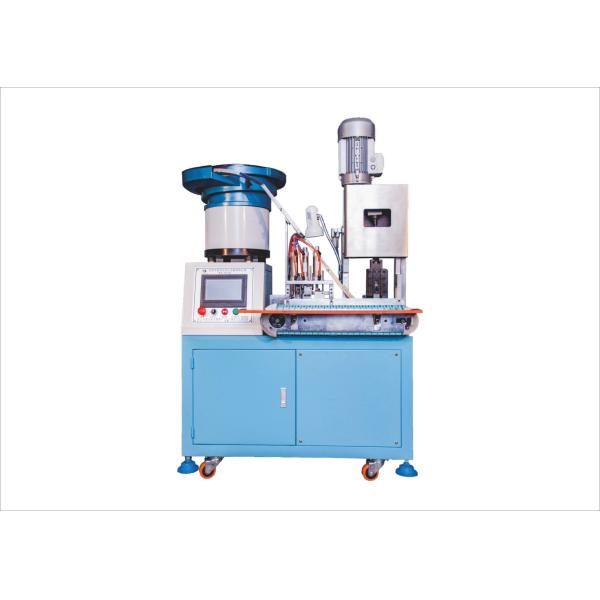

1.6kw European C7 2 Pin Crimping Machine For Flat 2 Cores Cable

Brand Name : CX

Model Number : CX-SE02

Place of Origin : CHINA

MOQ : 1/SETS

Price : FOB SHENZHEN

Payment Terms : T/T

Supply Ability : 150/SET PER MONTH

Delivery Time : 10-15 working days

Packaging Details : woodencase

Certification : ISO9001

Capacity : 2,300pcs-2,600pcs/hr

Punching force : 4T

Pass yield : ≥99%

jacket stripping length : 20mm-60mm

cores stripping length : 3mm-12mm

Air pressure : 0.5-0.8MPa

Power : 1.6kw

Contact Now

Automatic Flat 2 Cores Cable 2 Pin European C7 Power Cord Plug Making Crimping Machine

Description:

1, The 2 pin plug crimping machine with function jacket stripping, cores stripping, cutting, plug insert feeding, and crimping finished one time.

2, HMI debugging, the whole machine is controlled by PLC, frequency converter, and frequency conversion motor, with stable performance, simple operation, safety, and high efficiency.

3, The same type of plugs can share the machine, and different types of plugs cannot share the machine. Please contact us, we can recommend the right model for you, just send us the plug picture and parameters. We can arrange a free machine test.

4, The worldwide plug can be customized.

Applicable cable: H03VVH2-F, H05VVH2-F.

Technical Parameter:

Plug Crimping Machine
Model	CX-SE02	Crimping speed	2300-2600pcs/h
Punching force	4T	Voltage	AC220V/50Hz
Jacket stripping length	20mm-60mm	Cores stripping length	3mm-12mm
Air pressure	0.5-0.8MPa	Weight	433KG
Power	1.6kw
Dimension	1170mm770mm1550mm

1.6kw European C7 2 Pin Crimping Machine For Flat 2 Cores Cable

Finished product

Process: operator inset the cable+jacket stripping+cores stripping+cutting at same length+plug insert feeding+plug insert crimping finished in one step.
